GTi Series Subwoofers
|

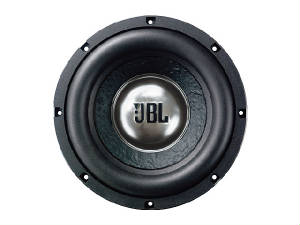

JBL W10GTI-MK2 10" DVC Subwoofer PRICE: $299.00 Sensitivity
90dB @ 2.83V/1m Power Handling 600W RMS, 3,000W Peak Frequency Response 20Hz ~ 1kHz Dual 6-ohm voice coils
Impedance 3 or 12 ohms Voice-Coil Diameter 3" (76mm) Mounting Depth 9-1/8" (232mm) Overall
Diameter 10-1/2" (267mm) Cutout Diameter 9-3/16" (233.4mm) Displacement 0.108 ft3 (3.06 l) |
|
JBL W12GTI-MK2 12" DVC Subwoofer PRICE: $359.00 Sensitivity
91dB @ 2.83V/1m Power Handling 700W RMS, 4,000W Peak Frequency Response 18Hz ~ 1kHz Dual 6ohm Voice Coil
Impedance 3 or 12 ohms Voice-Coil Diameter 3" (76mm) Mounting Depth 10-1/4" (260mm) Overall
Diameter 12-1/4" (312mm) Cutout Diameter 11" (280mm) Displacement 0.149 ft3 (4.23 l) |
|

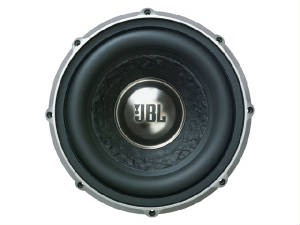

JBL P1022 10" 2ohm DVC Subwoofer PRICE: $149.00 Kevlar-impregnated
paper cone with Hi-roll rubber surround Plus One cone design for more effective surface area Power
Handling: RMS 400 Watts Power Handling: Peak 1200 Watts Sensitivity: 96dB Mounting Depth: 6-3/4" Cutout Diameter: 9-1/16" Impedance Dual 2 Ohms voice coils can be wired to deliver either a 1 ohm or 4 ohm load |
|
JBL P1024 10" 4ohm DVC Subwoofer PRICE: $149.00 Kevlar-impregnated
paper cone with Hi-roll rubber surround Plus One cone design for more effective surface area Sensitivity:
92dB Power Handling: RMS 400W Power Handling: Peak 1,200W Mounting Depth 5-3/4" Cutout Diameter
9-1/16" Impedance Dual 4 Ohms voice coils can be wired to deliver either a 2 ohm or 8 ohm load |
|

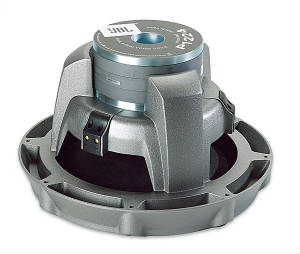

JBL P1224 12" 4ohm DVC Subwoofer PRICE: $179.00 12" subwoofer
with dual 4-ohm voice coils Kevlar-impregnated paper cone with Hi-roll rubber surround Plus One cone design for
more effective surface area power range: 50-400 RMS watts (200 watts per coil) 1600 watts peak power handling
frequency response: 23-450 Hz sensitivity: 94 dB mounting depth: 6-13/16" sealed box volume:
1.00 cu. ft. ported box volume: 1.75 cu. ft. Impedance Dual 4 Ohms voice coils can be wired to deliver either
a 2 ohm or 8 ohm load |
|
|
|
