Component Speaker Systems


CDT CL-61CV.2


Price: $159.99

Unique system that allows drivers to convert to a coaxial with supplied hardware. Allows for component sound quality in a car that requires coaxially mounted speakers.
6.5" 2-way convertable system
Mid woofers stamped 6.5" frame
Xover: HD-1000
Tweeter: 3/4" silk dome
Power handling: 100watts RMS @ 120Hz High-Pass
Frequency Response: 60-20kHz
Sensitivity: 91.3db

2ohm impedance for CL-61CV.2





CDT Audio KA-61CV.2

 Kee Audio new carbon fiber, cast aluminum vented frame, bass enhanced, 2ohm component speaker system!


PRICE: $249.99

Unique system that allows drivers to convert to a coaxial with supplied hardware. Allows for component sound quality in a car that requires coaxially mounted speakers.
6.5" 2-way convertible system
6.5" Carbon Fiber Cone
Cast Aluminum Alloy Vented Frame Basket
Crossover: EX-530 4th/5th order 2-way
Tweeter: TW-26 26mm Swivel Silk Dome
Power handling: 190Watt RMS @ 130Hz High-Pass
Frequency response: 55-20kHz
Sensitivity: 91.6 dB


Impedance: 2ohm, available in 4ohm as well

Surface & swivel flush mount housings

CDT CL-60


PRICE: $169.00
1 pair CL-6 6.5" midbass driver
6.5" Carbon Treated Paper Cone
Stamped Steel Powder Coated Black

Tweeter: EU-20 3/4" Swivel Silk Dom
Power handling: 170Watt RMS @ 120Hz High-Pass
Frequency response: 55-20kHz
Sensitivity: 92.3 dB
Impedance: 4 Ohm
Surface & swivel flush mount housings

CDT CL-42


Price: $179.99
4" component speaker system
Mid woofers stamped 4" frame
Satnet EX-484 24db 4/5th order 2-way crossover

Tweeter: TW-25 1" silk dome
Power handling: 130watts RMS @ 130Hz High-Pass
Frequency Response: 70-20kHz
Sensitivity: 91.1db
4ohm impedance

CDT CL-62 PRO


PRICE: $269.99

6.75" 2-Way component set
Mid: Stamped 6.75"
Crossover: EX-480 24db 4th and 5th order with upstage built in
Built-in Image enhancement Tweeter design
Tweeter: TW-25S 1" silk twtr
Power Handling: 160 watt RMS
100Hz high-pass
Frequency Response: 60-20kHz
Sensitivity: 92.3 dB
Impedance: 4Ohm
Surface & Flush mount Tweeter
Upstage tweeter

CDT EU-61CF


PRICE: $349.00
6.5" 2-Way carbon fiber set
Mid: 6.5” Cast alloy Carbon Fiber
Crossover: EX-480 24 dB. Elliptic 2-Way
Built-in Image enhancement Twtr design
Tweeter: TW-25S 1" silk twtr
Power Handling: 150 watt RMS @100Hz high-pass
Frequency Response: 60-20kHz
Sensitivity: 91.6 dB
Impedance: 4Ohm
Surface & Flush mount Tweeter

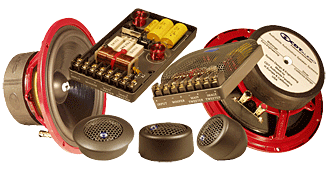

CDT HD-62


PRICE: $499.99
6.75" 2-way
Crossover: Sat/Net484 Elliptic 4th order 2-way
Tweeter: DRT 25 extended range 1" silk
Power Handling: 180watts rms @ HPF 130hz
Frequency Response 55-20kHz
Sensitivity: 92.6db
Impedance: 4ohm
Surface and flat mount tweeter housings

CDT ES-062i Ultra Competition Level Component Speaker Set


PRICE: $999.00
Model: ES-062i GOLD (6.5" 2-way)
Extended bass mid woofer: 6.5" Cast
Crossover: EX-560i“Transient Optimized” Elliptic 4th order 2-way
Tweeter: DRT-26 extended range modular 1” silk tweeter. aluminum and titanium twtr drivers available
Power handling: 250 watt RMS @ 100Hz High Pass
Frequency response: 50-20kHz
Sensitivity: 90.3dB.
Impedance: 4 Ohm
Surface & flush mount tweeter

CDT CL-61CV Speaker System and CL-61CV.2


Price: $149.99

Unique system that allows drivers to convert to a coaxial with supplied hardware. Allows for component sound quality in a car that requires coaxially mounted speakers.
6.5" 2-way convertable system
Mid woofers stamped 6.5" frame
Xover: Satnet EX-450
Tweeter: 3/4" silk dome
Power handling: 100watts RMS @ 100Hz High-Pass
Frequency Response: 60-20kHz
Sensitivity: 91.3db
4ohm impedance for CL-61CV

2ohm impedance for CL-61CV.2

CDT HD-62CFX and HD-62CF




PRICE: $189.99
    1 pr HD-E6CF 6.5" Carbon Fiber Mid- woofer
    1 pr 1" tweeter mounted on coax post.
    Frequency response 50Hz-20.000Hz
    (40Hz-20.000Hz in ported enclosure)
    Power handling: 170Watt
    1 pr HD-2500 12dB Elliptic crossover
    Impedance 4 Ohm (2 Ohm available)
    Sensitivity: 91.5dB
    Mounting depth: 2.5"
    Diameter: 6.5" (165mm
    Cone: Woven Carbon Fiber
    Magnet weight: 20 Oz
    Cone surround: rubber

CDT CL-42SL


PRICE: $219.99
1 pr CL-4SL 4" super slim mid-woofer
1 pr TW-25 1" silk dome tweeter
1 pr HD-2500 2-way crossover
Frequency response 100Hz-20.000Hz
Power handling (110Watt)
RMS HPF-120Hz
Impedance 4 Ohm
Sensitivity: 86 dB
Mounting depth: 1.25"
Cut out diameter: 3.625"
Cast frame: OD 4.56 "
Cone: Honey cone matrix
Magnet weight 15 Oz
Cone surround: rubber
Impedance: 4 Ohm
Voice coil: 1.0" (25.4mm)
Fs: 97.4Hz

CDT CL-6CX.2



Price: $159.99

6.5" 2-way convertable system
Extended Bass Mid woofers stamped 6.5" frame
Xover: HD-2500 2-way crossover

Tweeter: 3/4" silk dome
Power handling: 100watts RMS @ 100Hz High-Pass
Frequency Response: 50-20kHz
Sensitivity: 85.6db
4ohm impedance

ES-Gold Series ES-62i Competition Level Components


PRICE: $899.99
Midrange: 6.75" Cast fabric fiber glass/kevlar
Mounting dept: 2 3/4”
Crossover: ES-200US “Transient Optimized” Elliptic 4th order 2-way with Built-in UpStage design
UpStage tweeter: DRT-26 extended range modular 1” silk tweeter.
aluminum and titanium twtr drivers available
Power handling: 200 watt RMS @ 100Hz High Pass
Frequency response: 65-20kHz
Sensitivity: 92.6 dB.
Impedance: 4 Ohm
Surface & flush mount tweeter for UpStage mount

***NEW PRODUCT

CDT HD-82


PRICE: $499.00
HD-2 2” Mid/Tweeter
HD-800CF 8” cast mid-bass woofer
MX-2000 2-way super modular crossover
Power handling: 400watt RMS
Frequency response: 10-20,000Hz
Impedance: 4 Ohm

***NEW PRODUCT

CDT HD-842


PRICE: $549.99
HD-2 2” Mid/Tweeter
HD-4 4" midrange/midbass driver
HD-800CF 8” cast mid-bass woofer
MX-2000 2-way super modular crossover
Power handling: 400watt RMS
Frequency response: 10-20,000Hz
Impedance: 4 Ohm
