JBL Monoblock Amplifiers

Performance Engineered by Crown



JBL GTO-501EZ


PRICE: $179.99
Grand Touring Series Class AB Monoblock Car Amplifier
RMS Power Rating:
4 ohms: 350 watts x 1 chan.
2 ohms: 500 watts x 1 chan.
Max power output: 770 watts x 1 chan.
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost)
Preamp RCA outputs
Cast-aluminum heatsink
JBL patented DBOC (Dynamic Bass Optimization Circuitry)

CEA-2006 compliant amplifier
Frequency response: 20-330 Hz
Dimensions: 8 7/16"W x 9 11/16"H x 2-3/8"D
4-gauge power and ground wiring is required for installation

JBL A6000GTi

6000 Watt Amplifier Subwoofer Amplifier


PRICE: $3999.00
Amplifier Type Mono
RMS Power  6000W x 1 at 12.5V
THD at 4-Ohm RMS Power  0.018 %
RMS Power  7500W x 1 at 14.4V
Speaker Level Inputs No
Preamp Outputs Yes
Built-In Crossovers LP
Bass Boost None
Frequency Response 20-400 Hz
Signal to Noise Ratio >90 dB
High-Efficiency Switching Power Supply
Current Servo Circuitry with Crown Professional Technology
Battery Post Style Terminal Blocks Allow for 1/0 Gauge Power Wire
Series or Parallel Bridge for Full Power Into 4-Ohm or 1-Ohm Loads
Die-Cast Aluminum Chassis with Top Plexiglas Viewing Window
Fully Illuminated Internals
Variable Low-Pass Crossover (32-320 Hz)
Selectable Crossover Slope (12 / 24 dB)
Dynamic Bass Optimization (DBO) Subsonic Filter
Variable Phase Control
Damping Factor Greater Than 1000
Over 15 Horsepower of Peak Output

JBL GTO14001

1500 Watt Mono Subwoofer Amplifier


PRICE: $399.00
Grand Touring Series Class AB Monoblock Car Amplifier
RMS Power Rating:
4 ohms: 1200 watts x 1 chan.
2 ohms: 1500 watts x 1 chan.
Max power output: 2000 watts x 1 chan. approx.
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost)
Preamp RCA outputs
Cast-aluminum heatsink
JBL patented DBOC (Dynamic Bass Optimization Circuitry)
Variable low-pass filter (32-320 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-330 Hz
Dimensions: 18-9/16"L x 10-3/8"W x 2-1/8"H
4-gauge power and ground wiring is required for installation

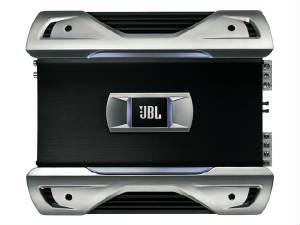

JBL GTO3501

360-Watt Mono Subwoofer Amplifier


PRICE: $189.00
Grand Touring Series Class AB Monoblock Car Amplifier
RMS Power Rating:
4 ohms: 225 watts x 1 chan.
2 ohms: 360 watts x 1 chan.
Max power output: 700 watts x 1 chan. approx.
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost)
Preamp RCA outputs
Cast-aluminum heatsink
JBL patented DBOC (Dynamic Bass Optimization Circuitry)
Variable low-pass filter (32-320 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-330 Hz
Dimensions: 12-1/4"L x 10-3/8"W x 2-1/8"H
8-gauge power and ground wiring is required for installation

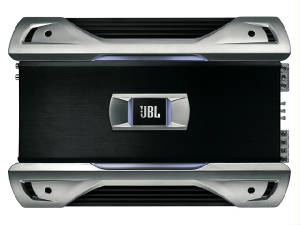

JBL GTO7001


PRICE: $239.00
Grand Touring Series Class AB Monoblock Car Amplifier
RMS Power Rating:
4 ohms: 425 watts x 1 chan.
2 ohms: 700 watts x 1 chan.
Max power output: 700 watts x 1 chan. (4 ohms)
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost)
Preamp RCA outputs
Cast-aluminum heatsink
JBL patented DBOC (Dynamic Bass Optimization Circuitry)
Variable high-pass filter (10-100 Hz, 12 dB/octave)
Variable low-pass filter (32-320 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-330 Hz
Dimensions: 15"L x 10-3/8"W x 2-1/8"H
4-gauge power and ground wiring is required for installation

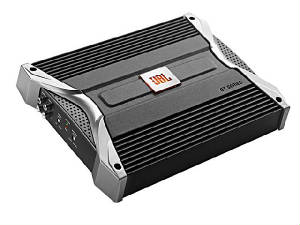

JBL GT5-A3011

300-Watt Mono Subwoofer Amplifier


PRICE: $179.00
200W RMS x 1 Channel at 4 Ohms
300W RMS x 1 Channel at 2 Ohms
Signal to Noise Ratio: 95dBA
THD + N: 0.05%
Built-in Variable Electronic Crossover
Frequency Response: 20Hz-330Hz (-3dB)
Max. Power: 600W
RCA low-level preamp inputs
RCA low-level preamp outputs
Remote Bass-level control included
12" x 9 1/4" x 2 1/8"
